1959 Chevrolet Apache 3100 Short Bed Fleetside Big Back Window Double Deluxe

1959 Chevrolet Other Pickups

1959 Chevy Apache 3100 Double Deluxe

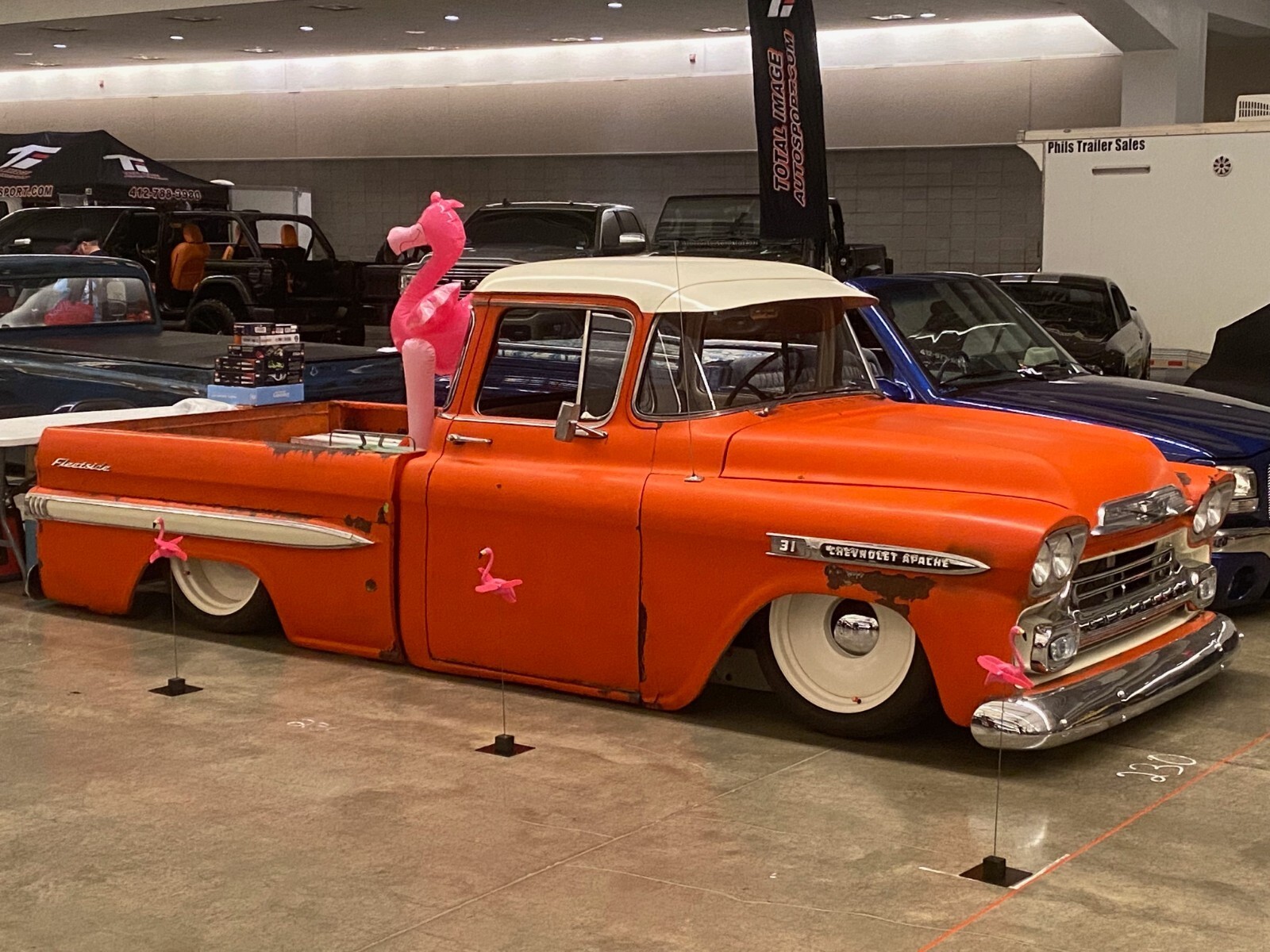

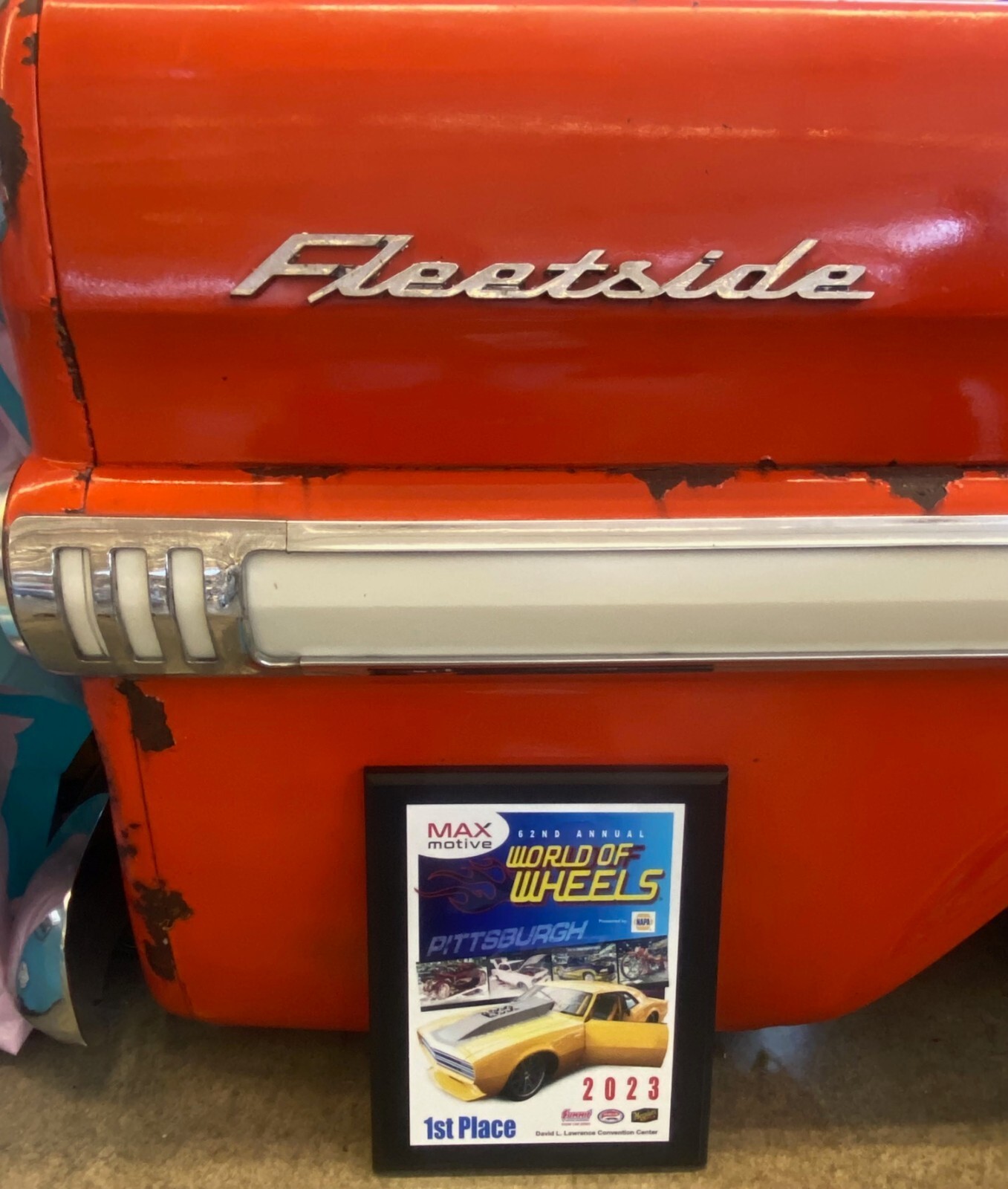

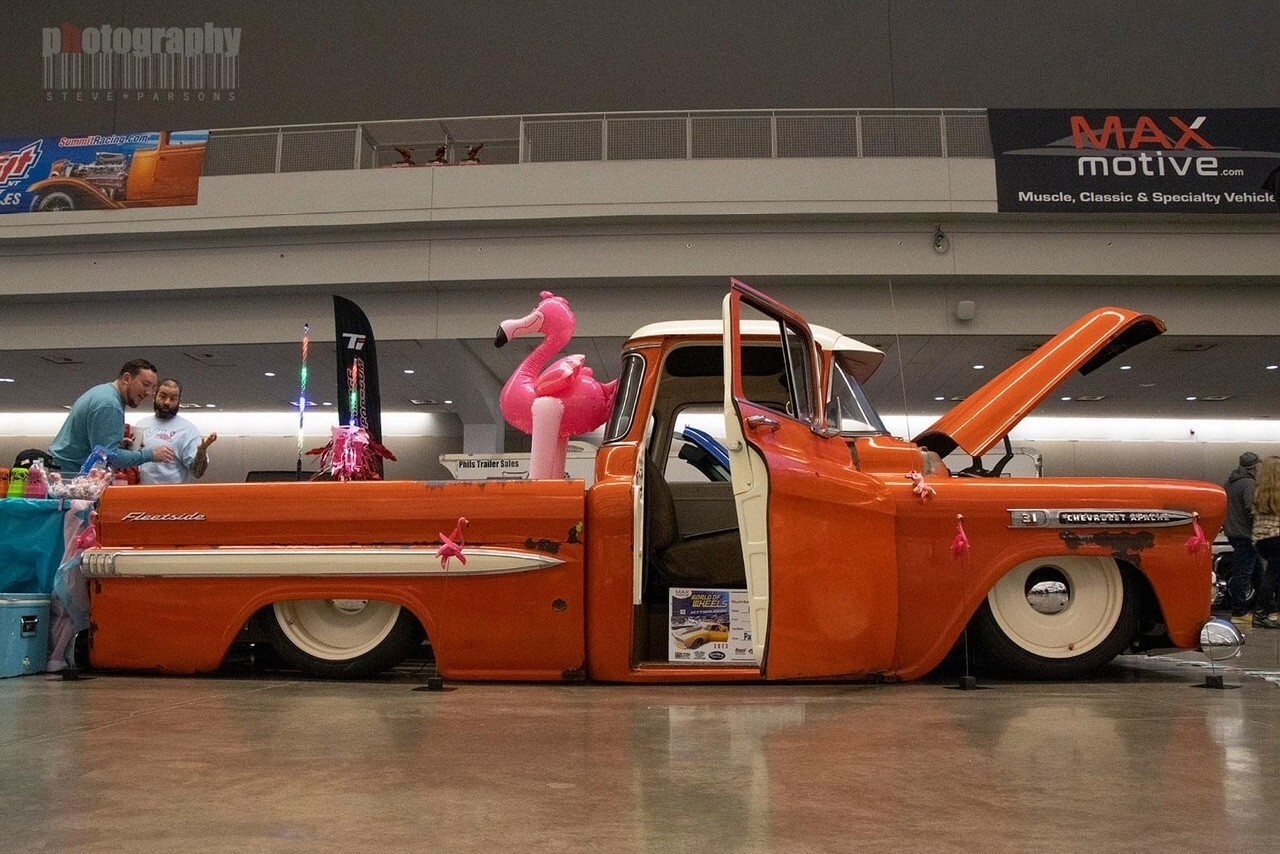

1st Place Pittsburgh World of Wheels Winner!!!

1959 Chevrolet Apache 3100 Short Bed Fleetside Big Back Window Double Deluxe Trim Package 350 Five Speed on Air Ride.

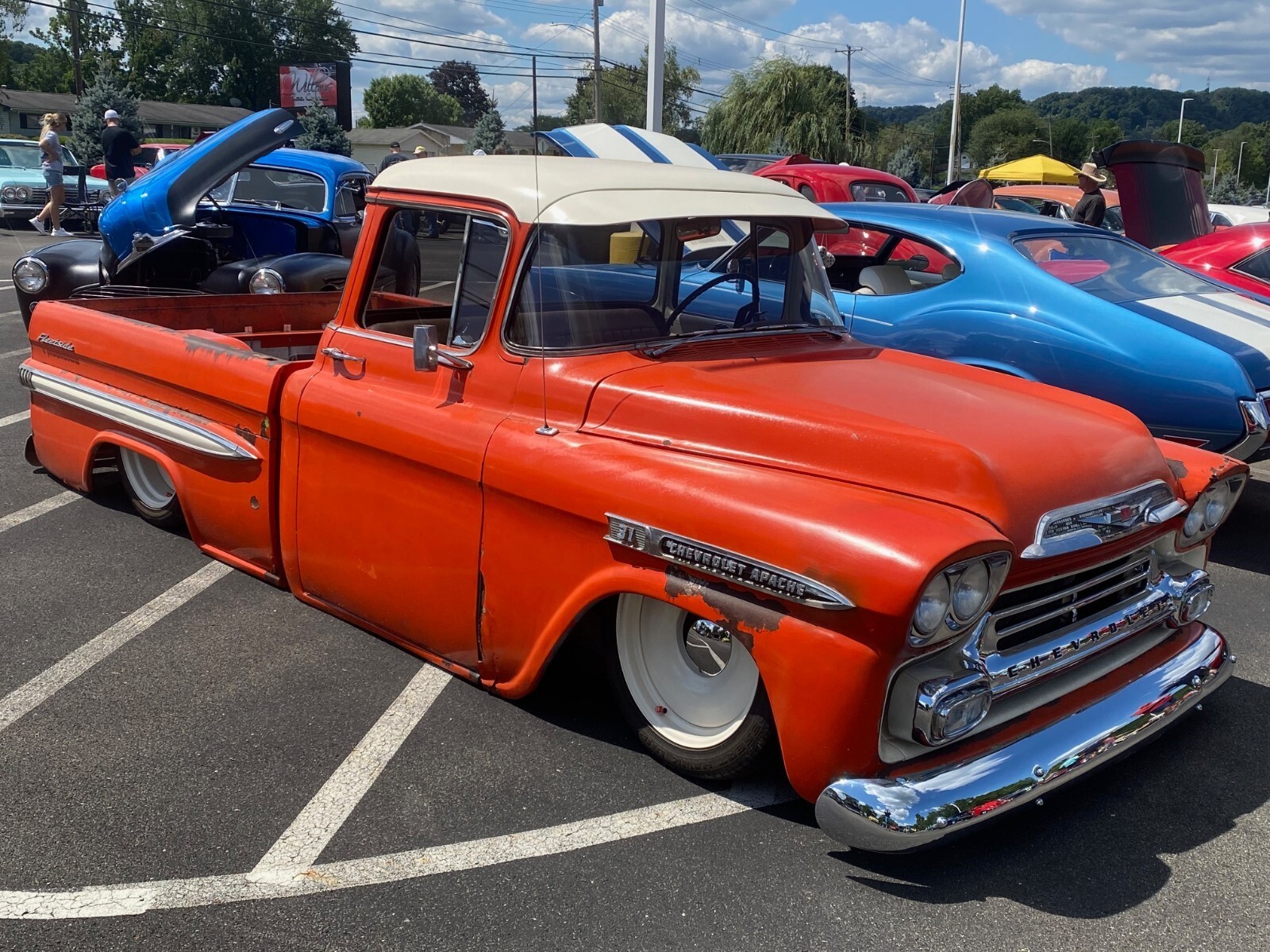

Factory Stainless steel bed spear trim and factory chrome cab trim around all the glass. Factory chrome all throughout the cab like dash knobs, radio knobs, vent cables as well as chrome bumpers, chrome grill, chrome headlight bezels and stainless tail light bezels.

Where do I even begin to describe this truck? Fully customized, modified, updated, upgraded, improved and restored. Anything that could be powder coated was powder coated in Butter Cream. Anything that could be chrome is.

You could not build this truck in parts alone for what I would let it go for.

There is more than $40,000 just in parts to build the rolling chassis with the driveline and air management.

Chassis:

Choppin Block Extreme Air Ride Chassis….Full Chassis. This is not a hack camaro front clip or an aftermarket clip that uses a large majority of your 70 year old frame. This is a full frame!!

When I bought this frame I checked every box and bought every upgrade.

• Upgraded to the highest extreme level…level 3

• Small block engine mounts

• Air tank mounts

• Custom width Ford 9”

• 31 Spline 3.50 Posi Trac Center Section

• Front Sway Bar

• Rear Sway Bar

• Optima battery box

• 20 Gallon custom fit fuel cell

• Slam Specialties SS7 air bags

• Front 12” Wilwood Superlite 4 piston calipers

• Rear 12” Wilwood Dynalite Pro 4 piston rear calipers

• Upgraded Wilwood spindles..This allows a sealed bearing hub assembly and thinner profile rotor assembly rather than an inner and outer wheel bearing. This is not only a better design but will never limit center cap choices for any wheels.

• Frame is powder coated Buttercream

• Every bolt was replaced with gold anodized grade 8 hardware

• The chassis today is $20,000 shipped and that does not include powder coat or hardware

• https://cbcpro.com/collections/chassis/products/3100-extreme-chassis-1955-59

Brakes:

• Wilwood Everything

• Front 12” Wilwood Superlite 4 piston calipers

• Rear 12” Wilwood Dynalite Pro 4 piston rear calipers

• Wilwood Brake Master Cylinder

• Wilwood Clutch Master Cylinder

• Wilwood Brake Booster

• Wilwood Adjustable Proportioning Valve

• Wilwood Stainless Brake Hoses

• All Copper brake lines

Wheels/Tires:

• Detroit Steel Wheels D Town Smoothies

• 20x8 Front

• 20x11 Rear

• 245/45/20 Front Tires

• 315/30/20 Rear Tires

• Baby Moon smooth center caps

• Powder Coated Butter Cream

• https://detroitsteelwheel.com/wp-content/uploads/2024/11/2025-DSW-Co.-Price-List.pdf

• $3,000 in wheels and tires

Air Management:

• Fully upgraded Airlift 3H

• Utilizes ride height sensors and is not pressure based

• Can be switched to pressure based in the App

• Upgraded to 2 compressors, Viair 485C...best and most powerful compressors on the market

• Compressors recover 1-2psi of air per second

• 200psi capability at 100% duty cycle compressors

• ⅜” airline and not ¼”

• Truck can go from laying frame on the ground to ride height with the air in the tank....no need to wait for more air to be made

• https://airslamit.com/products/air-lift-performance-3h-3-8-management-kit-27695-airmaxxx-air-compressors-aluminum-tank-harness?variant=47261617160505

• $3,500 in parts

Engine:

• ATK High Performance HP89 Crate Motor

• Dart Aluminum Cylinder Heads

• Holley Sniper Everything

• Aeromotive Stealth in tank fuel pump...not the junk frame rail mounted Holley pump

• Edelbrock Dual Plane Intake

• March Performance pulleys and brackets

• Tuff Stuff black powder coated water pump

• Tuff Stuff Power Steering Pump

• Custom Made Power Steering Hoses

• 250 amp alternator

• Powermaster hi torque mini starter

• 4 Core Aluminum Radiator with custom fan shroud and hi performance electric fan

• Cadillac style air cleaner

• Stainless Steel Headers

• Full Stainless Steel exhaust and Stainless Steel mufflers

• All ARP Hardware

• 400HP

• 420 Ft Lbs Torque

• https://atkhp.com/product/atk-hp89m-chevy-350-mid-dress-engine-390hp/

• $8,000 in Parts

Transmission:

• GM NV3500 5 speed

• Professionally rebuilt/overhauled

• New Flywheel

• New Clutch

• New Hydraulic throwout bearing

• All ARP Hardware

• Stainless Braided clutch hose

• $3,000 in parts/labor

Driveshaft:

• Professionally built and balanced two piece driveshaft with carrier bearing

• Every piece is new, no yokes or slip joints were reused

• This allows the truck to sit completely on the ground without the floor being modified in any way for driveshaft clearance.

• $1300 in parts/labor

Suspension:

• Mustang 2 Front suspension

• Power Steering

• Tubular Control Arms

• Wilwood Billet Hubs

• Wilwood Sealed Wheel Bearing Hubs

• 73-87 Style Ball Joints

• Fox Racing Ridetech 2 way fully adjustable shocks

• Fully Adjustable Triangulated 4 Link

• Fox Racing Ridetech 2 way fully adjustable shocks

• $2,000 in suspension upgrades

Interior:

• Fully restored to appear original

• New reproduction steering wheel

• Ididit steering column

• Classic Instruments reproduction gauge cluster with added tachometer

• Hurst Custom made 5 speed shifter

• Vintage Air Heater

• New Headliner

• New ACC Carpet

• New ACC Carpet behind the seat

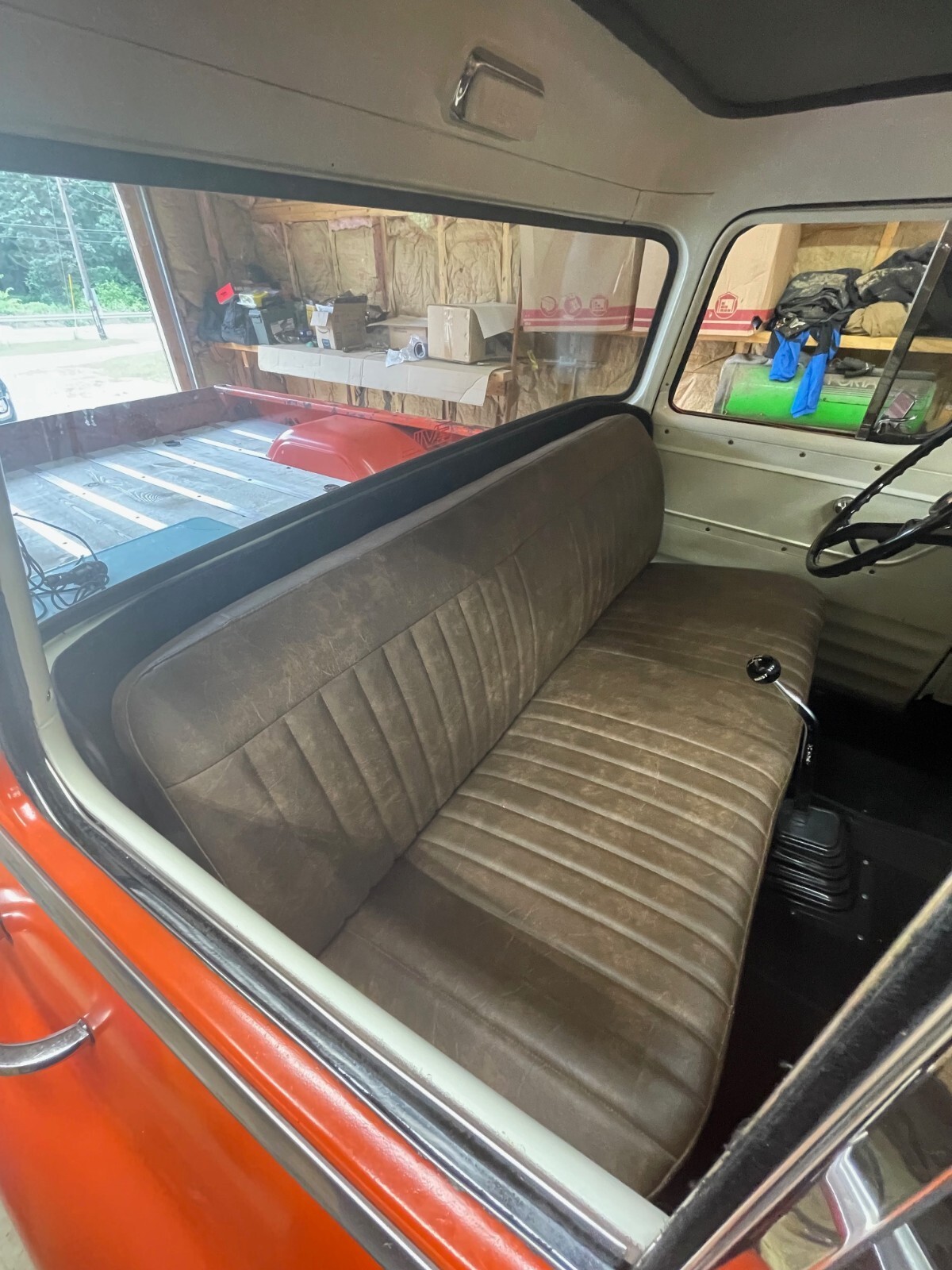

• Recovered modified original seat

• Seat was cut down 4" so it sits below the rear window

• Every knob, crank, dial, and button is brand new

Glass:

• Auto City Classics complete glass kit with New Wing Windows

• Tinted smoke gray in the glass and not film

• All new gaskets and weatherstripping

• $1,500 in parts

Wiring:

• Painless Wiring Harness

• 21 Circuit kit

Upgrades:

• Eddie Motorsports Billet Aluminum gas charged hood hinges

• Custom made front inner fenders

• Custom made double width rear wheel tubs

• Dynamat everywhere

• New chrome grill

• New chrome front bumper

• New bumper brackets

• New chrome headlight bezels

• New chrome rear bumper

• New bumper brackets

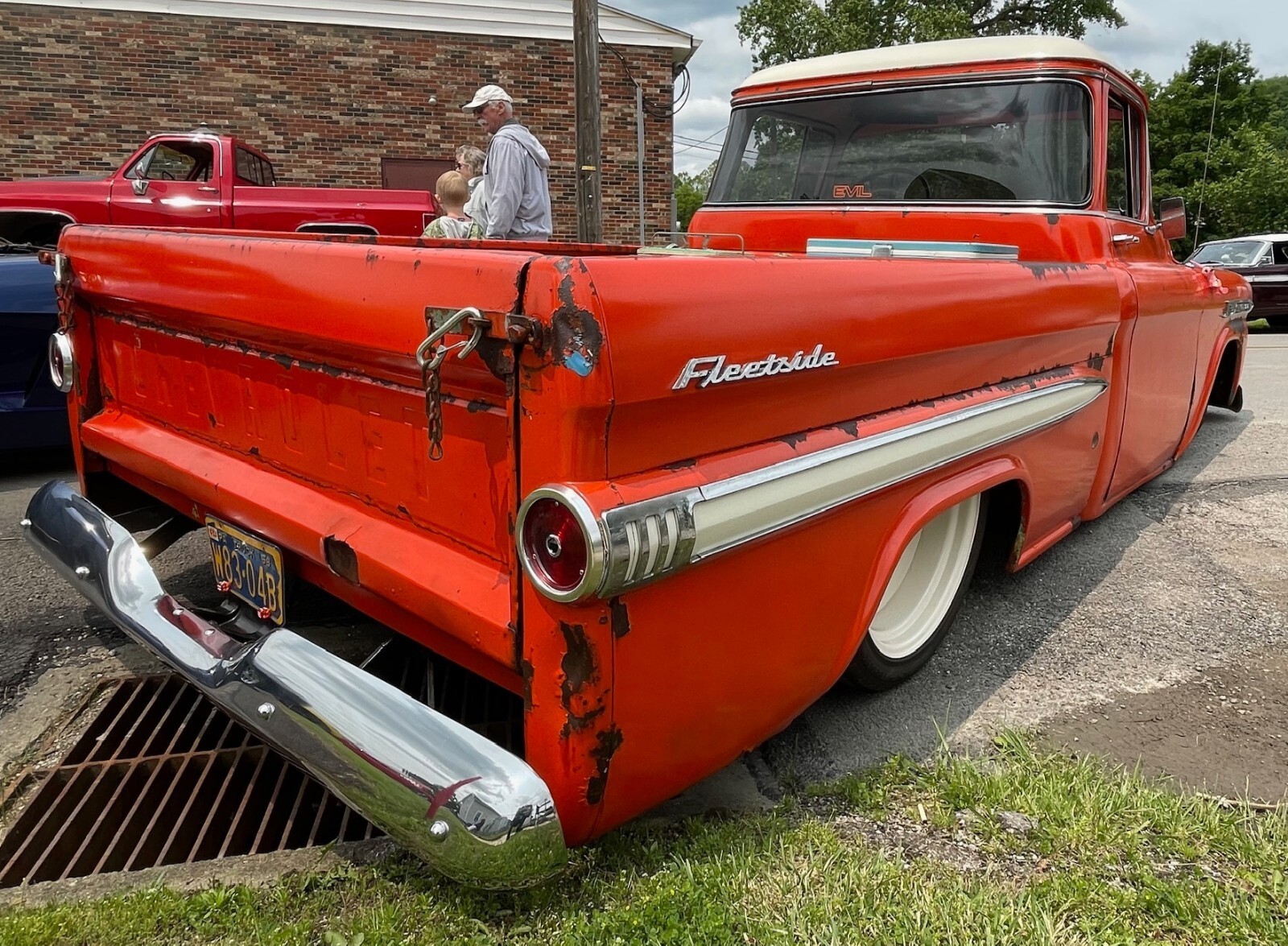

• New tail light housings, lenses and bezels

• New Visor

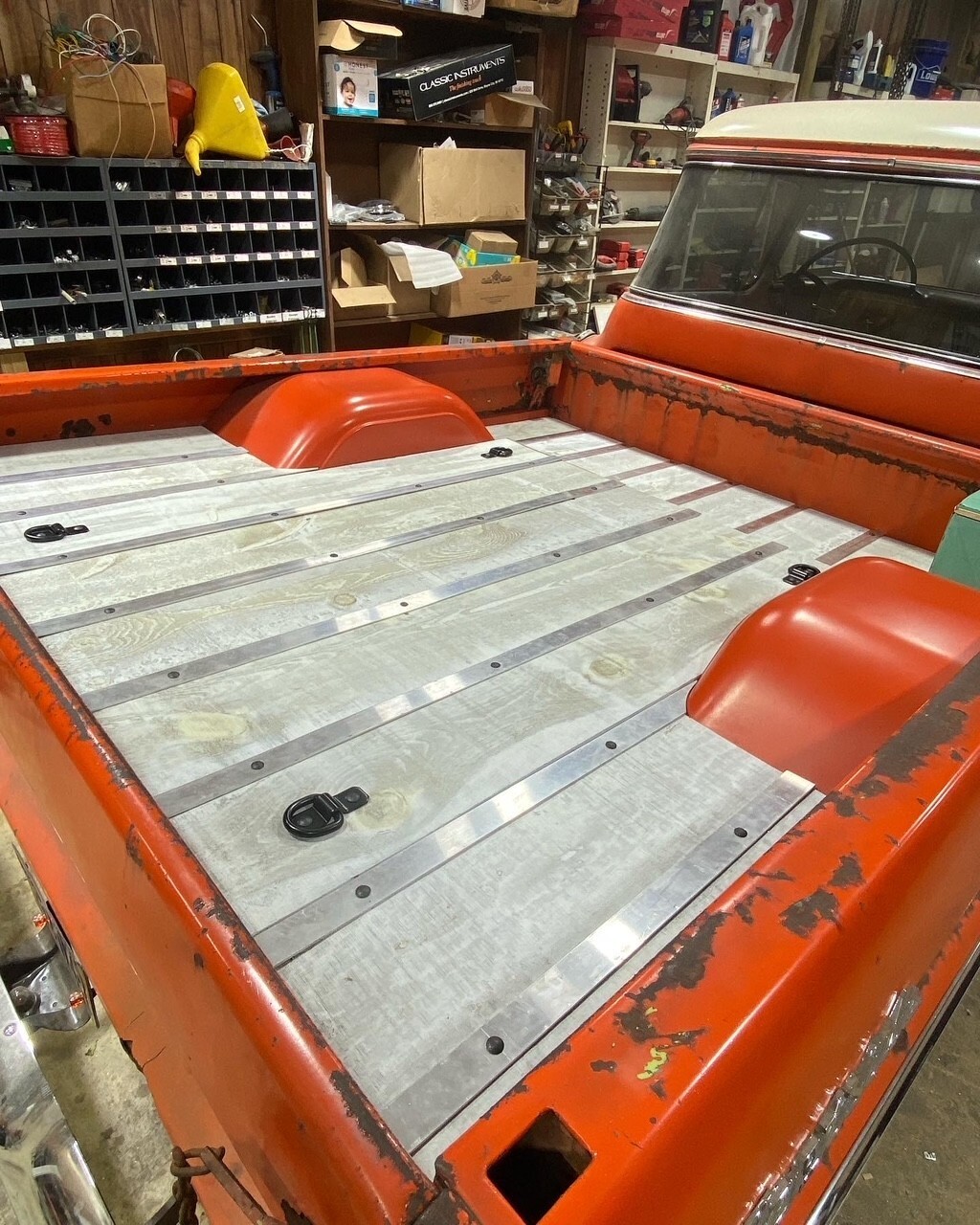

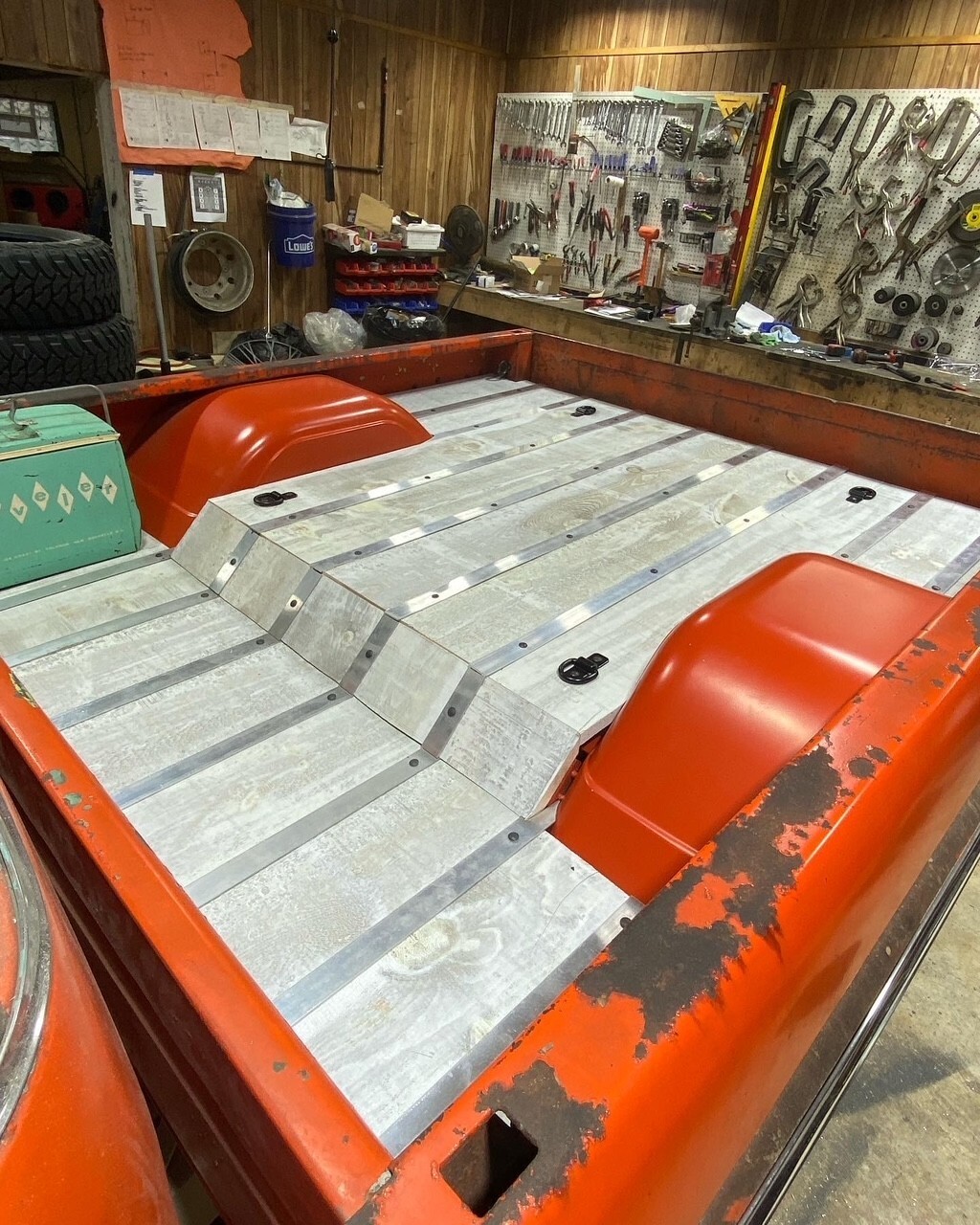

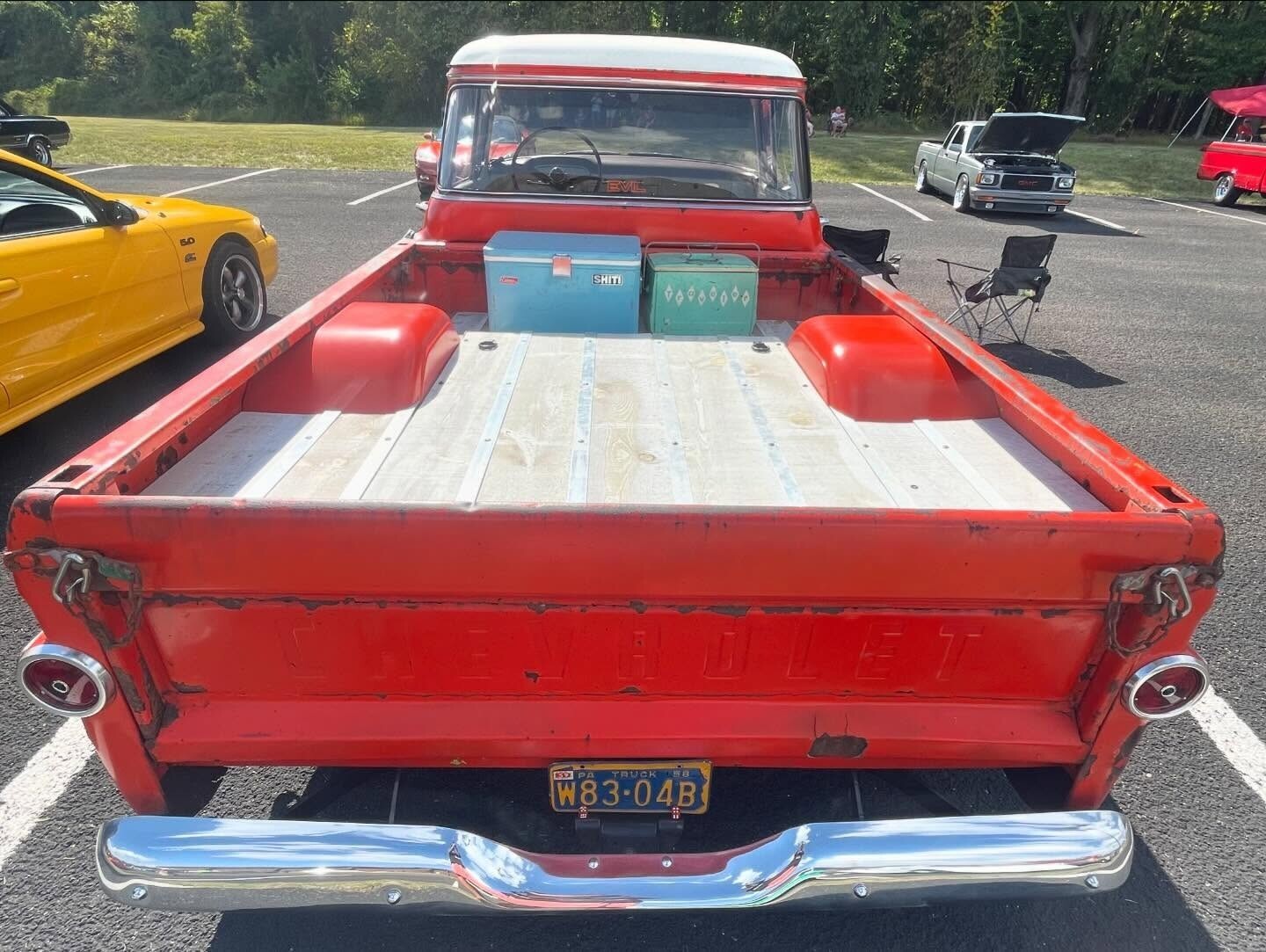

• Custom distressed white bed floor with removable center section

• Steps are ⅛” Steel diamond plate

• Step risers into the cab are ⅛” steel plate

• Floor pans have been replaced

• Lower hinge pockets have been replaced

• $$$ Countless thousands spent on the miscellaneous

• Make: Chevrolet
• Model: Other Pickups
• Type: Standard Cab Pickup
• Doors: 2
• Year: 1959
• Mileage: 505
• Color: Orange
• Engine size: Chevy 350 5.7
• Number of cylinders: 8
• Fuel: Gasoline
• Transmission: Manual
• Drive type: 2WD
• Interior color: Black
• Drive side: Left-Hand Drive
• Vehicle Title: Clean
Want to buy? Contact seller!
